$ 3,500.00

LAUNCH SPECIAL- $250-off with code: adxlaunch. Valid through 5/31. Shipping 5/31.

Our belt drive Pinion hardtail, designed with Ryan Van Duzer for cross-country & bike-packing adventures. Comfort + Capability + Compatibility make the ADX the ultimate adventure bike. Shipping 5/24.

Step 1 Select Your Size:

Not sure? Check out our sizing guide.

Ship to:  Update
View Shipping Options
Shipping Method Est. Time

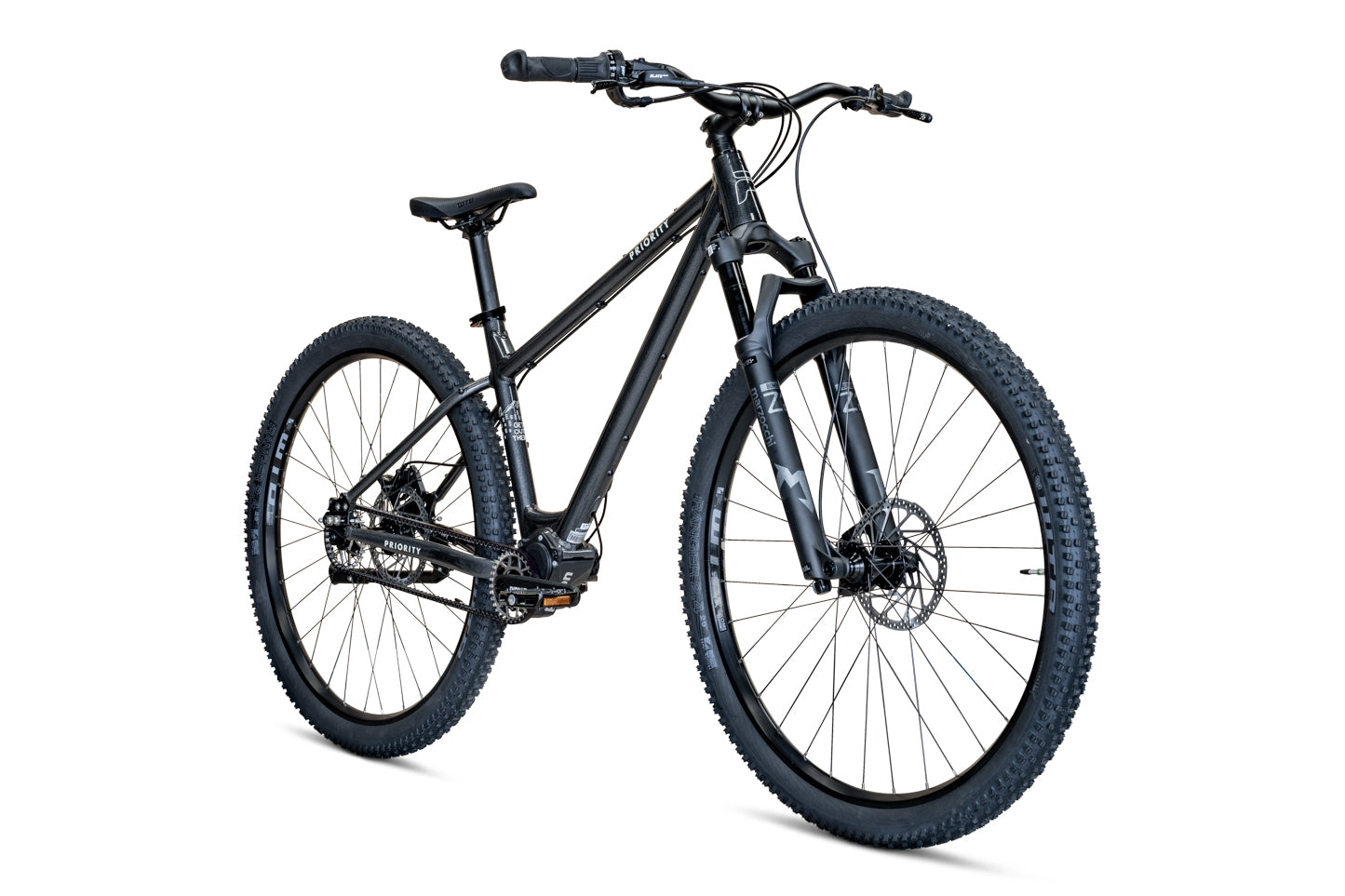

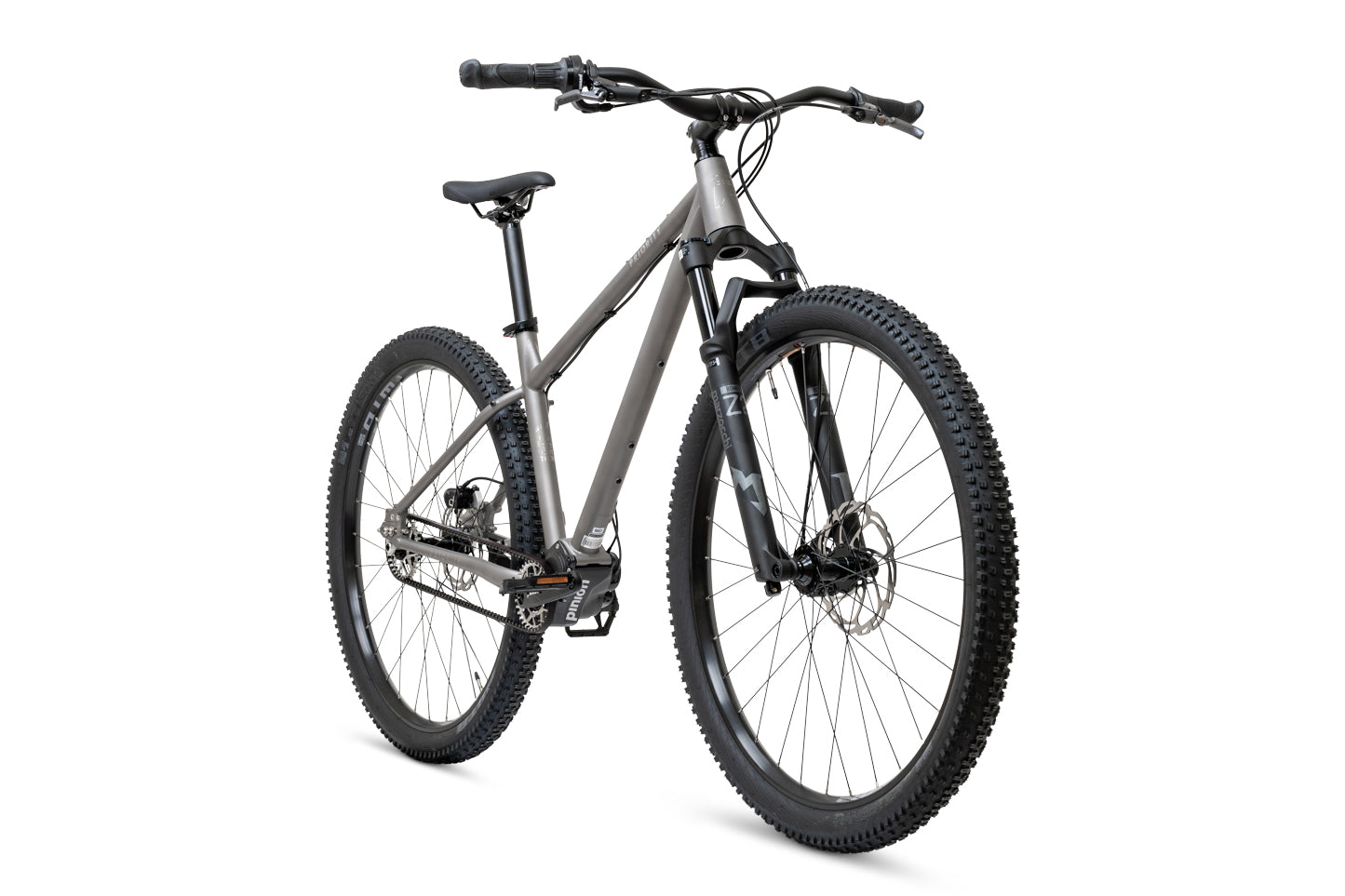

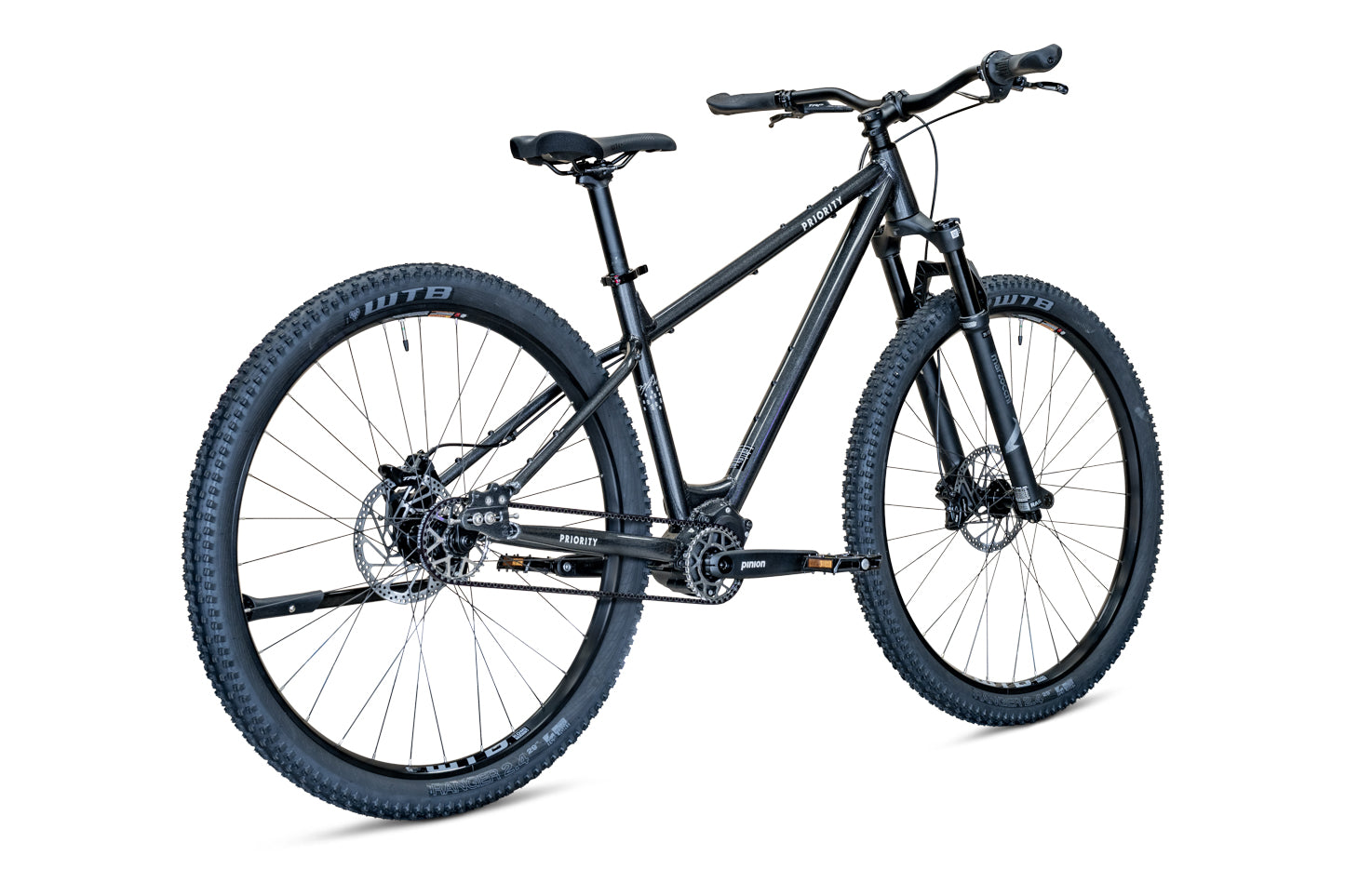

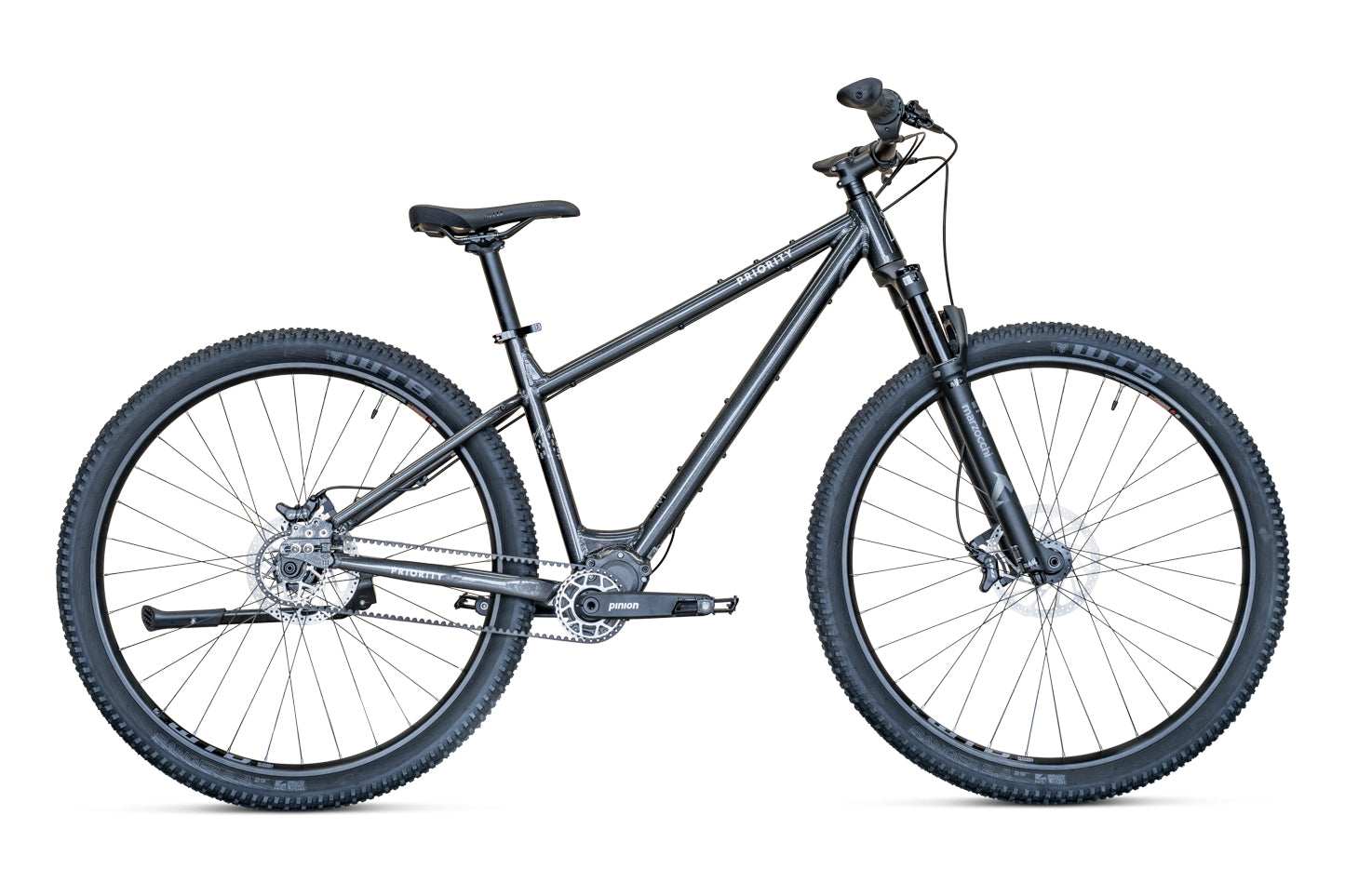

The 600ADX - THE ULTIMATE PINION-ENABLED, GATES BELT DRIVE-EMPOWERED ADVENTURE BICYCLE

Comfort, Performance, and Capability for boundless exploration

The 600ADX is the undisputed champion of the bikepacking world.  The combination of a Gates Carbon Drive CDX belt and Stainless CDX sprockets with the sealed Pinion C1.12 gearbox means no rust, a longer component life, and more confidence for everything from your daily rides to bucket-list adventures.  With the 600ADX’s fit and more braze-ons than you can dream of, riders of all sizes and setups are ready for whatever your journey demands.


Designed and tested by adventure cycling legend Ryan Van Duzer, the 600ADX was created to deliver comfort, capability, and compatibility to allow riders to "GET OUT THERE.” Duzer’s experience on long-haul adventures around the world have informed the fit, feel, and utility of the 600ADX.  Our team has outfitted the optimal component set and geometry for ultimate confidence.  With no chains, no derailleurs, and an ergonomic fit, every ride is a joy, whether it is on winding mountain trails or rugged backcountry roads.

ABOUT THE 600ADX

PURPOSE-DESIGNED FOR ULTIMATE ADVENTURE CONFIDENCE

The features of the 600ADX deliver an unparalleled balance of durability, compatibility, and comfort not found in other bicycles.

For trail, touring, and everyday rides, the Pinion C1.12 Gearbox paired with the Gates Carbon Drive belt leaves the hassles of chains and derailleurs in the dust. Accessible geometry along with an ergonomic cockpit make pedaling a joy, and the Marzocchi suspension fork and WTB tires take the harshness out of rough terrain. The variety of mounting points give flexibility for accessory combos for overnighters or long-hauls.

All you need to do is schedule your next adventure.

01

02

03

04

05

06

07

01

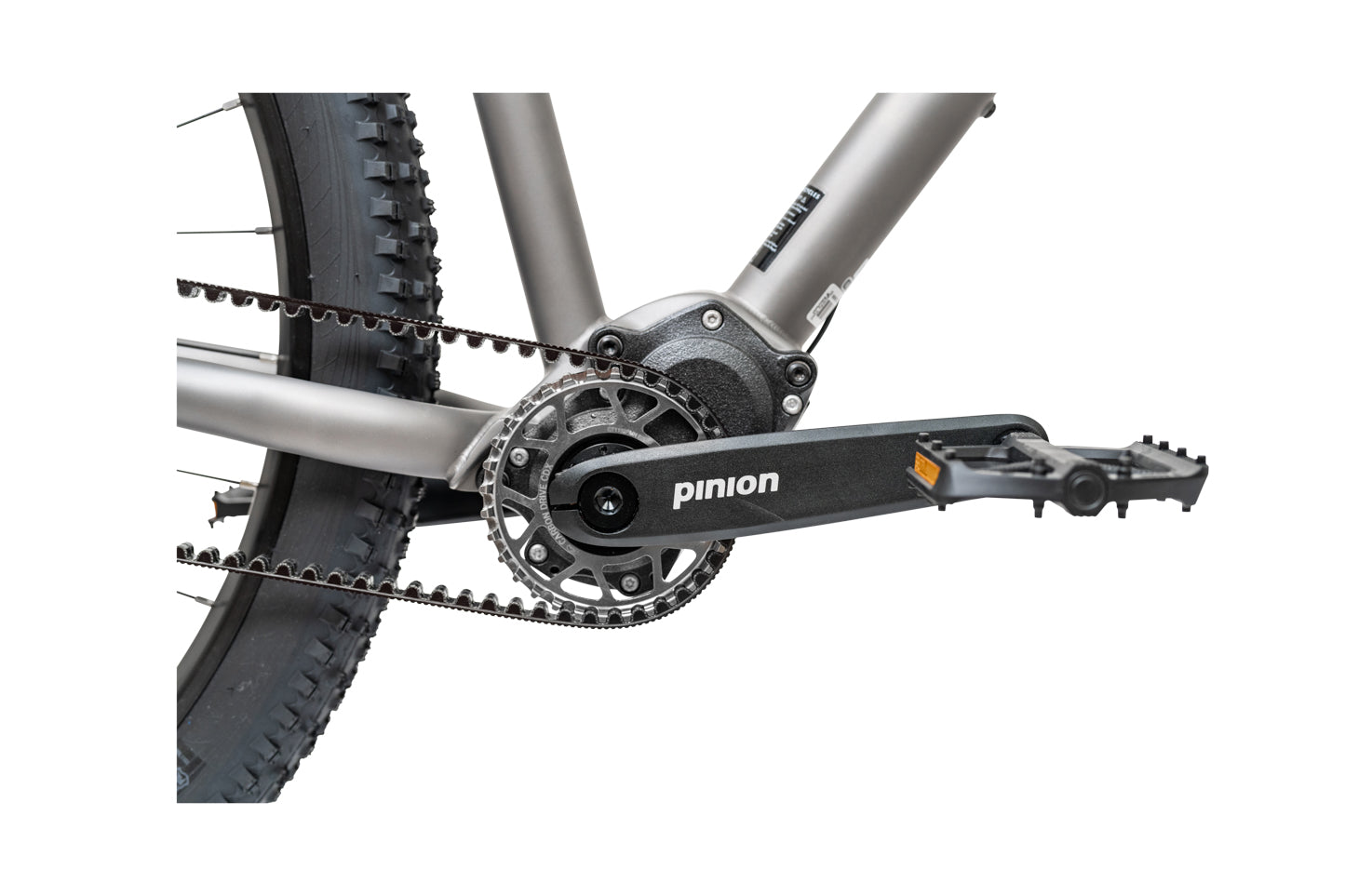

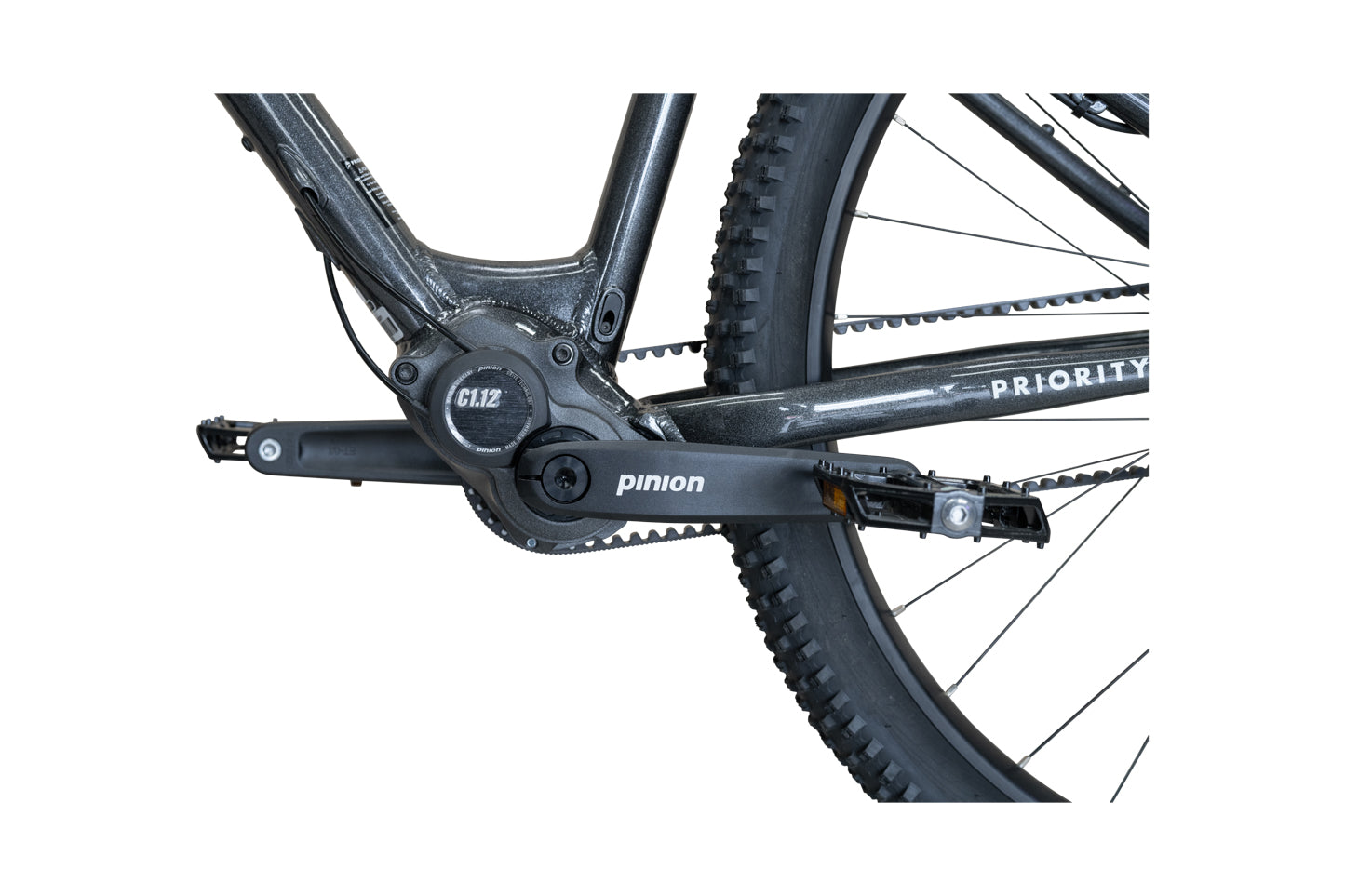

Gear range for days: Pinion C1.12 Gear Box

Sealed for low maintenance, and center-mounted for a planted, yet maneuverable feel, the C1.12 gearbox is precision designed with an evenly-spaced 12-speed system boasting a 600% gear range - equivalent to a traditional 30-speed with no gear overlap or derailleur upkeep. Ride across the country almost twice before needing service.

02

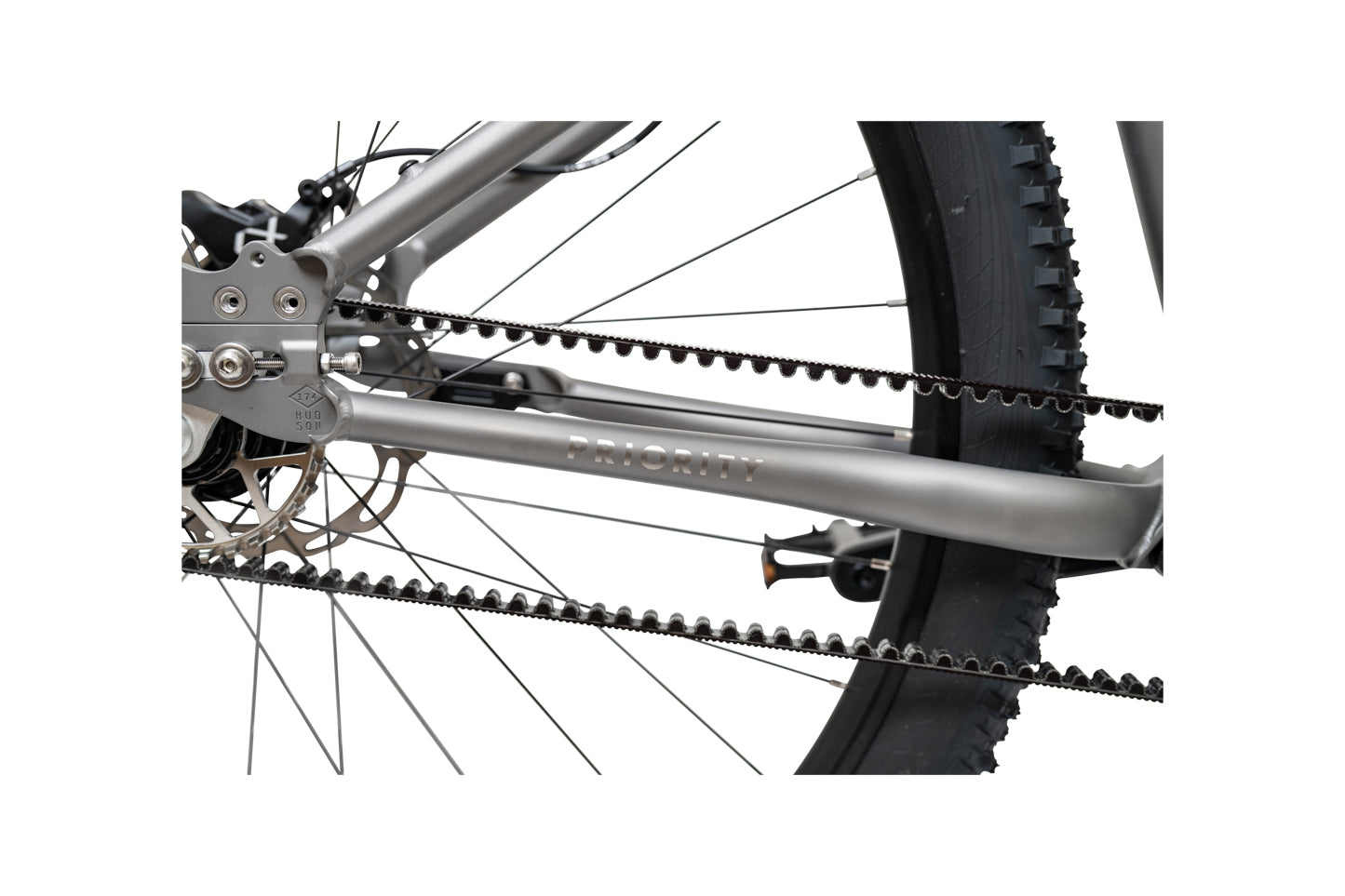

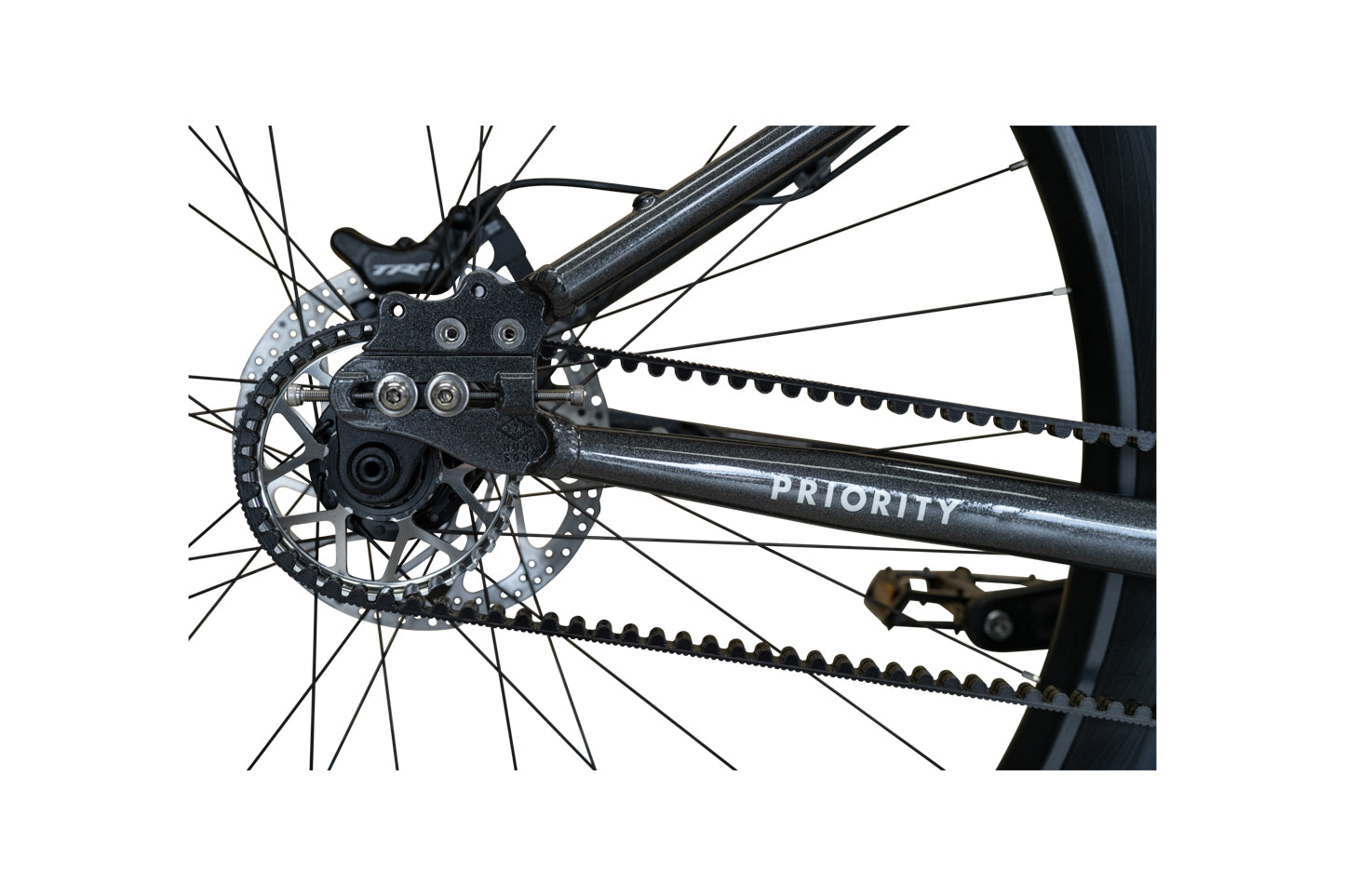

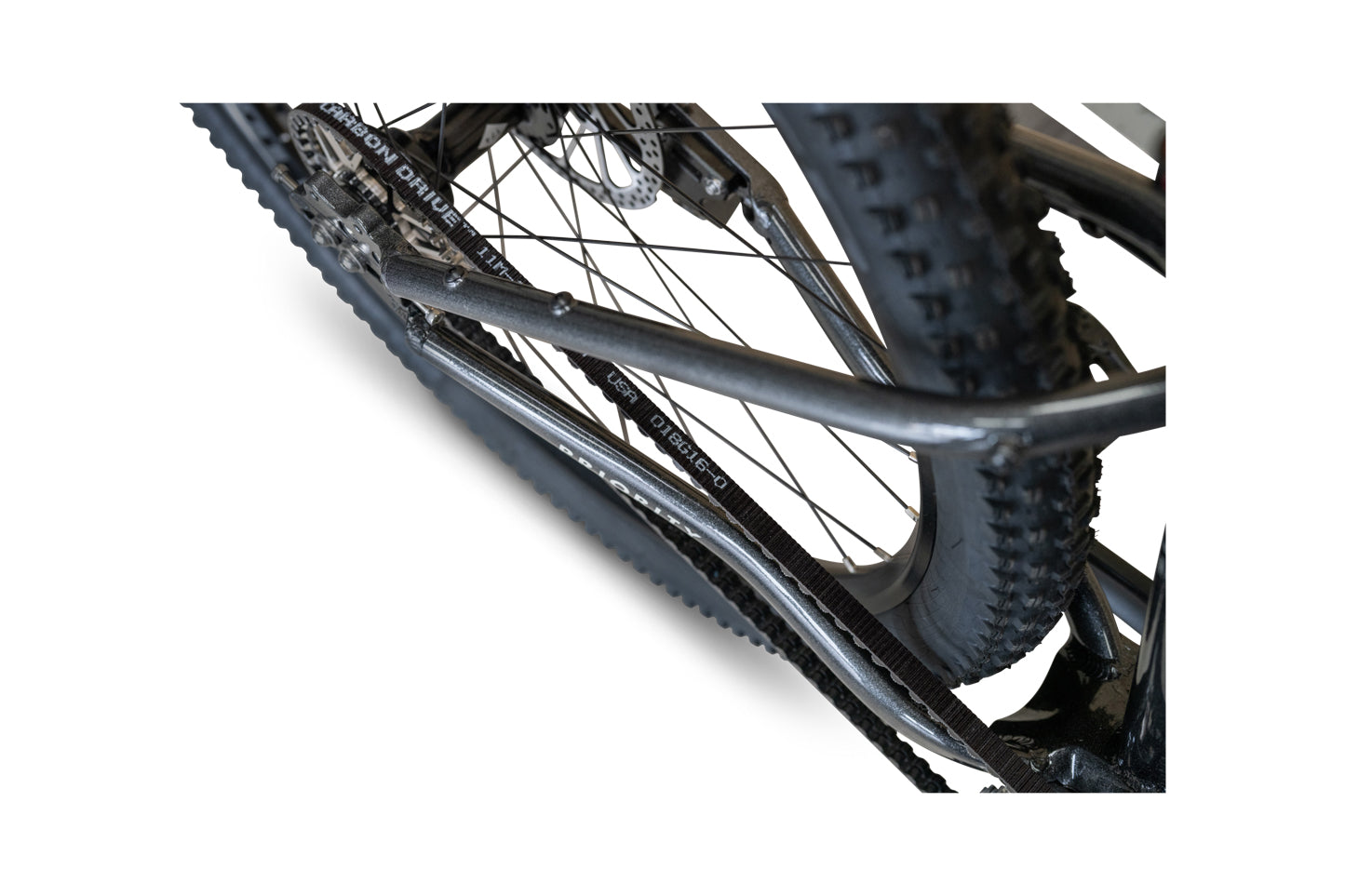

Always ready: gates carbon drive CDX belt

No rust, no grease, and no routine maintenance to deal with. Strong enough for automotive applications, but specifically designed for the rigors of adventure riding. Unchain your ride and free yourself from dirty hands, skipping chains, and exposed derailleurs.

03

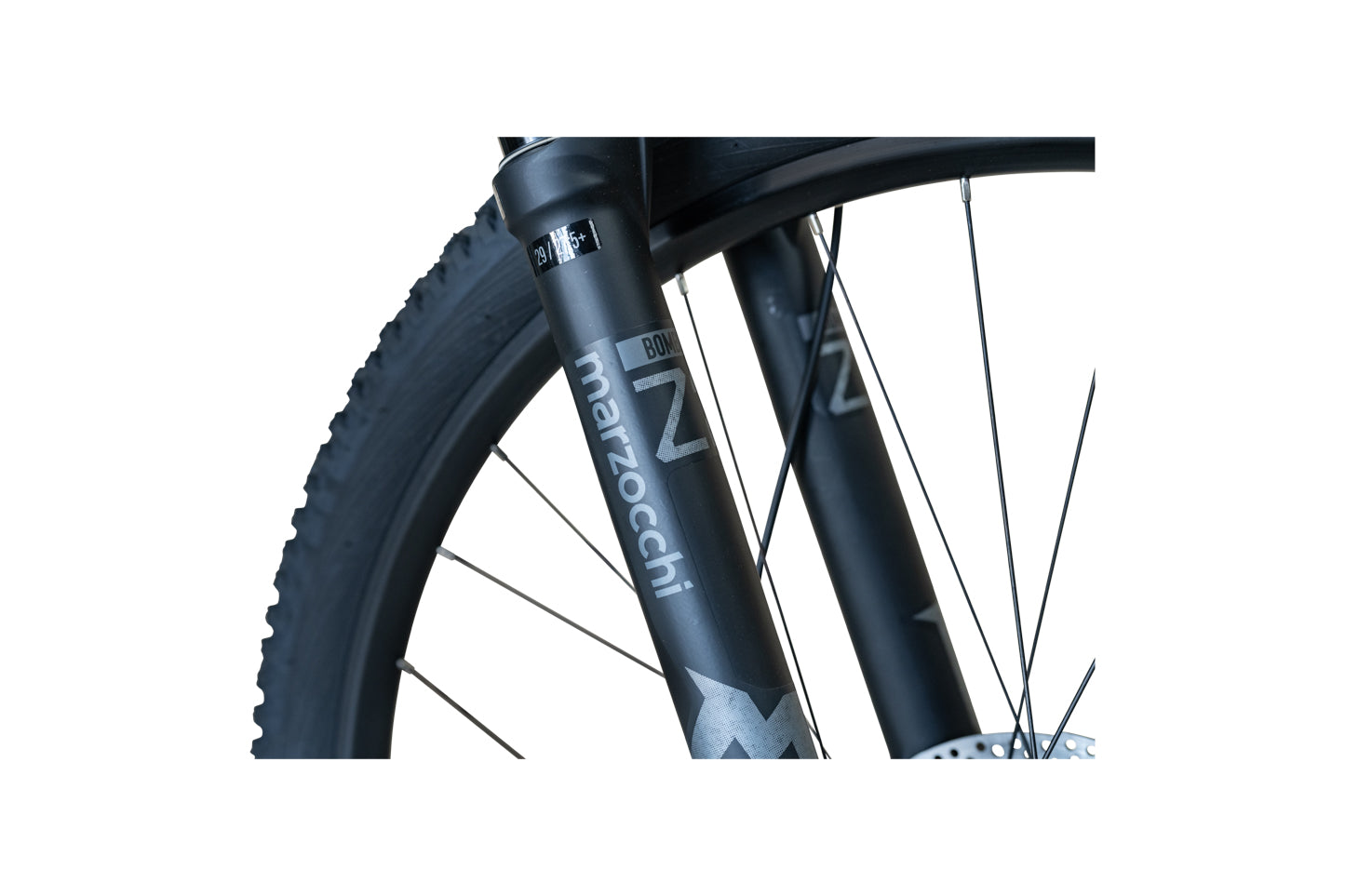

Travel for your Travels: Marzocchi Bomber Z2 Fork

The Marzocchi Bomber Z2 suspension fork with 100mm travel offers a lightweight, smooth, and plush ride experience. Its low maintenance and high durability will keep your riding longer and get you out further.

04

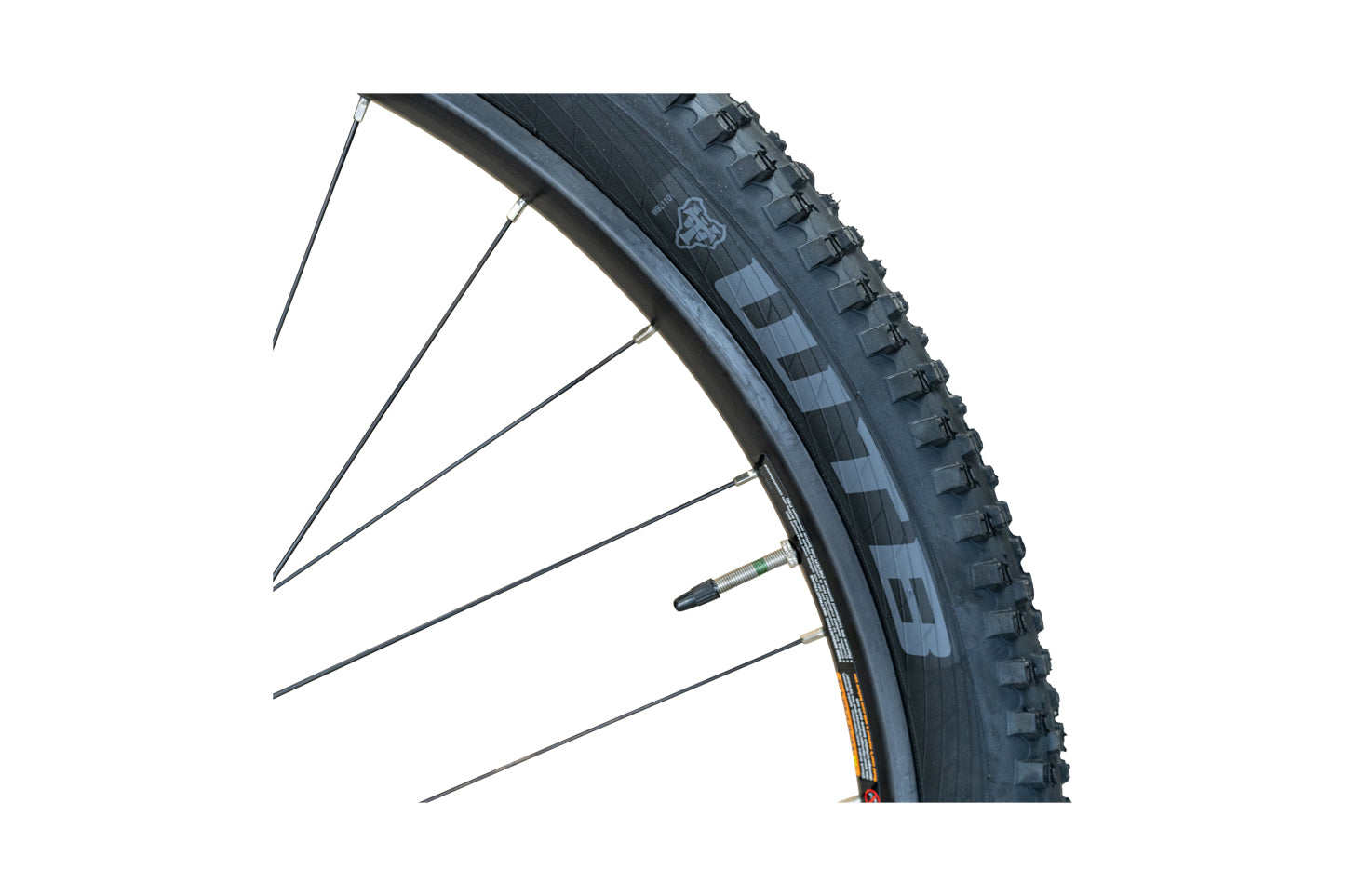

FOR ALL TERRAINS: WTB TIRES & RIMS

When it comes to tubeless-ready, the WTB Ranger 29 x 2.4” tires and WTB KOM Trail rims are a match made in adventure heaven. With TCS 2.0 tubeless technology, they work together to provide capability and confidence across various types of terrain. WTB tires' TriTec rubber compound leverages three distinct rubber durometers to maximize of traction, support and durability based on their placement within the tread while SG2 casing provides bead to bead puncture and pinch flat protection.

05

what can't you mount?: 19 braze on flexible system

With 19 individual mounting points and 5 pairs for bottles and other similar mounting systems, there is no limit to how and how much gear you can take with you. There's enough space to pack for an afternoon ride, quick overnight, or load up for a week-long tour.

06

GET ENGAGED: TORQUE-TOUGH REAR WHEEL

With 6 pawl, 2 phased, 60 points of engagement, the brand new, single speed, Boost-spaced rear hub offers quicker engagement for more responsive pedal input, and notable durability for loaded bikes on steep slopes. The symmetrical hub also means optimal and balanced bracing angles for the spokes on the drive and non-drive sides.

07

ANY RIDE ANYTIME: Flexible sizing and geometry

Four sizes for a wide range of heights and inseams deliver flexibility for an array of riders, without compromising performance. The geometry features a headtube angle and chainstay length that work together to provide handling that is nimble enough for trail riding and stable enough for fully-loaded treks.

01

Gear range for days: Pinion C1.12 Gear Box

Sealed for low maintenance, and center-mounted for a planted, yet maneuverable feel, the C1.12 gearbox is precision designed with an evenly-spaced 12-speed system boasting a 600% gear range - equivalent to a traditional 30-speed with no gear overlap or derailleur upkeep. Ride across the country almost twice before needing service.

02

Always ready: gates carbon drive CDX belt

No rust, no grease, and no routine maintenance to deal with. Strong enough for automotive applications, but specifically designed for the rigors of adventure riding. Unchain your ride and free yourself from dirty hands, skipping chains, and exposed derailleurs.

03

Travel for your Travels: Marzocchi Bomber Z2 Fork

The Marzocchi Bomber Z2 suspension fork with 100mm travel offers a lightweight, smooth, and plush ride experience. Its low maintenance and high durability will keep your riding longer and get you out further.

04

FOR ALL TERRAINS: WTB TIRES & RIMS

When it comes to tubeless-ready, the WTB Ranger 29 x 2.4” tires and WTB KOM Trail rims are a match made in adventure heaven. With TCS 2.0 tubeless technology, they work together to provide capability and confidence across various types of terrain. WTB tires' TriTec rubber compound leverages three distinct rubber durometers to maximize of traction, support and durability based on their placement within the tread while SG2 casing provides bead to bead puncture and pinch flat protection.

05

what can't you mount?: 19 braze on flexible system

With 19 individual mounting points and 5 pairs for bottles and other similar mounting systems, there is no limit to how and how much gear you can take with you. There's enough space to pack for an afternoon ride, quick overnight, or load up for a week-long tour.

06

GET ENGAGED: TORQUE-TOUGH REAR WHEEL

With 6 pawl, 2 phased, 60 points of engagement, the brand new, single speed, Boost-spaced rear hub offers quicker engagement for more responsive pedal input, and notable durability for loaded bikes on steep slopes. The symmetrical hub also means optimal and balanced bracing angles for the spokes on the drive and non-drive sides.

07

ANY RIDE ANYTIME: Flexible sizing and geometry

Four sizes for a wide range of heights and inseams deliver flexibility for an array of riders, without compromising performance. The geometry features a headtube angle and chainstay length that work together to provide handling that is nimble enough for trail riding and stable enough for fully-loaded treks.

BY THE NUMBERS

No other adventure bike in its class delivers the performance, capability, and comfort in a Pinion gearbox enabled package.

600%

Gear Range

12

speed Pinion C1.12 System

6,000

Mile service interval

19

Mounting Points

Designed for all charted and uncharted terrain

Frame/Fork 6061 aluminum, rack mounts, bottle cage mounts on the top tube, downtube (top and bottom), and seat stays, Pinion gearbox node
Fork Marzocchi Bomber Z2 100mm travel, 44mm offset, 110mm Kabolt thru-axle
Gearbox Pinion C1.12 - 600% gear range, fully sealed

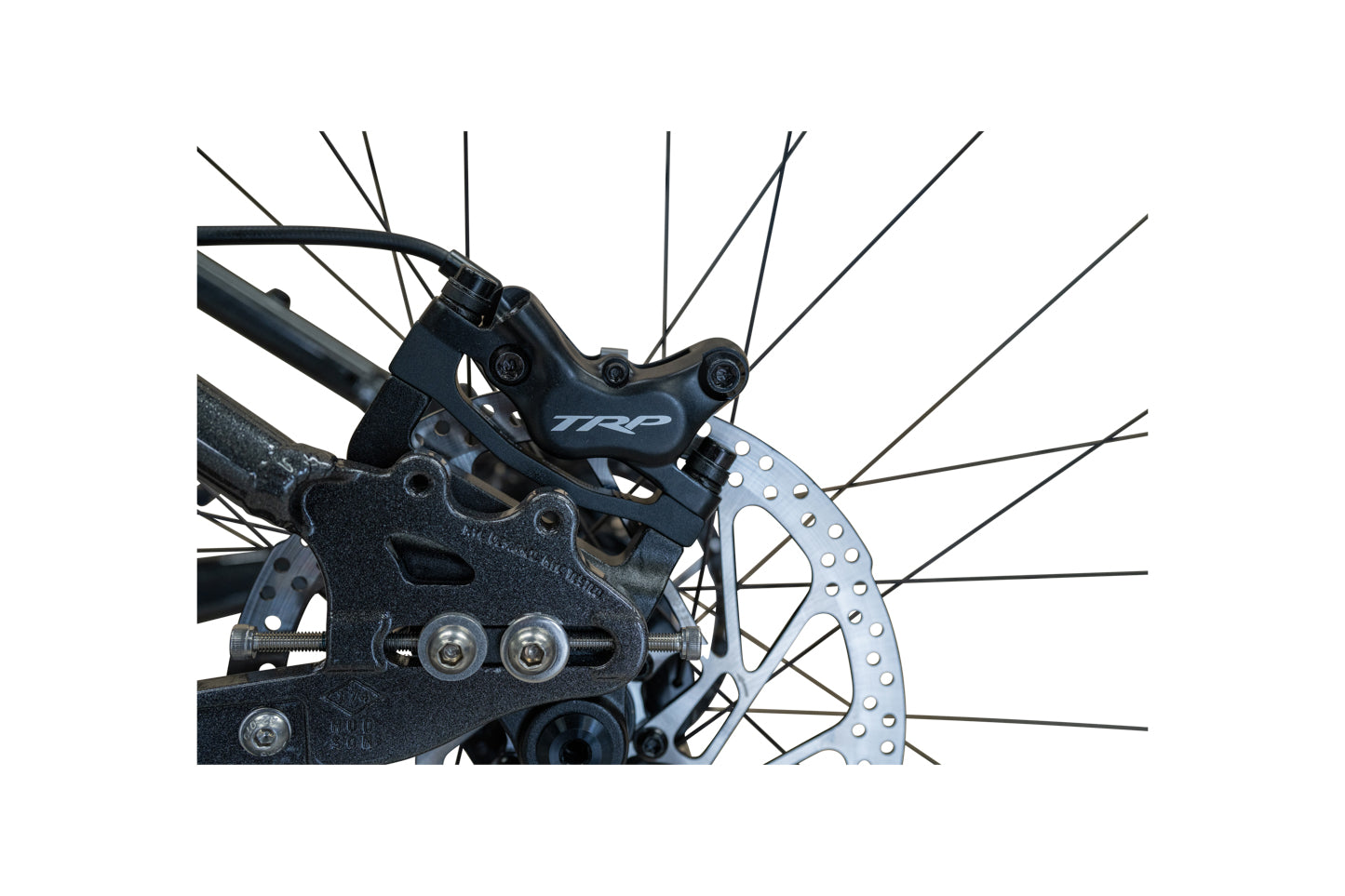

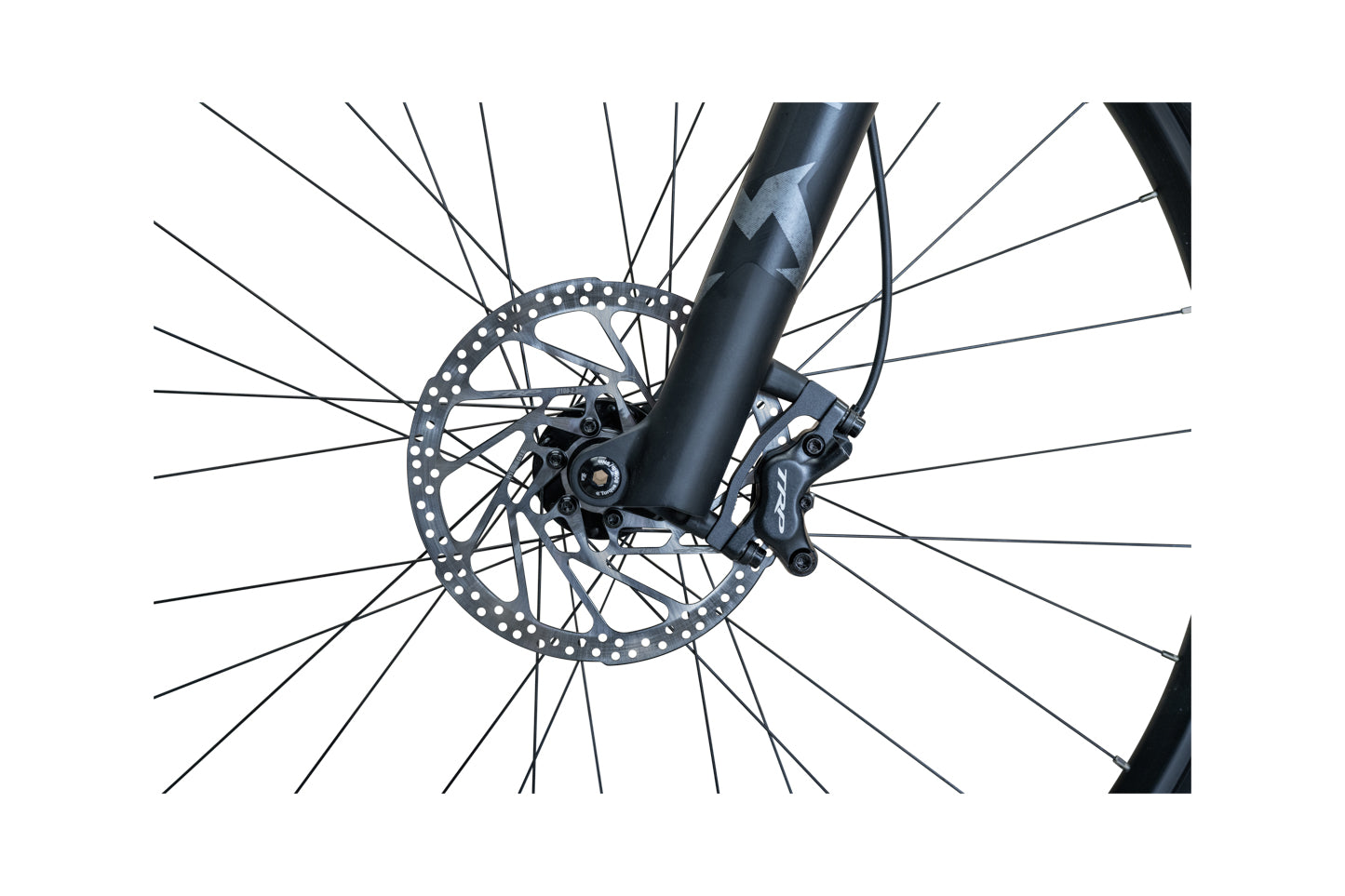

Brakes TRP Slate T4 quad piston hydraulic disc 180mm rotor F/R

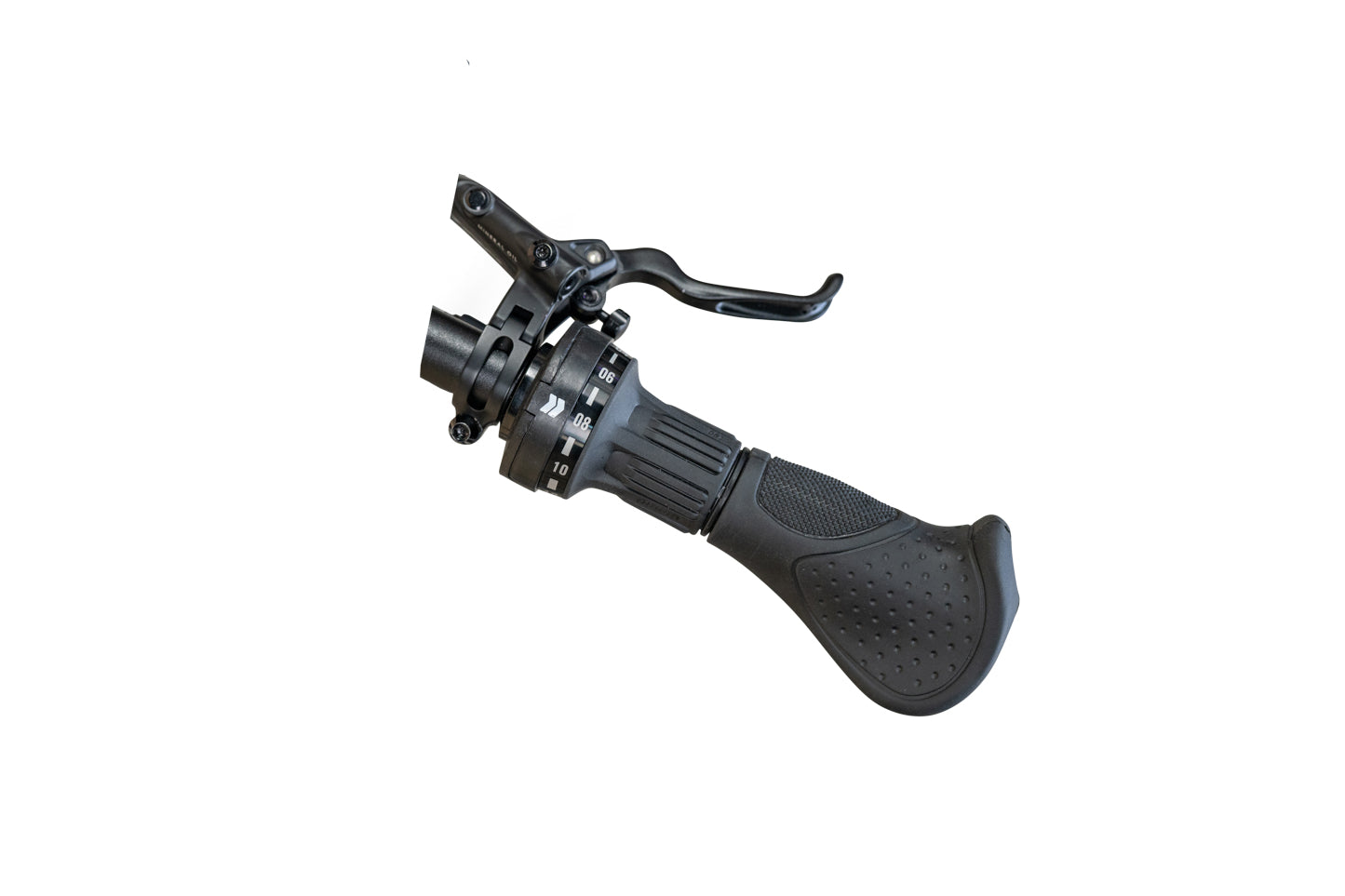

Shifters Pinion DS2 gripshift
Handlebar 20mm rise, 17-degree backsweep
Stem 60mm length, 6-degree rise
Grips Priority Ergonomic lock-on
Front Wheel WTB KOM Trail rim, 32 14g Sapim stainless spokes, Alloy thru-axle hub 15mm thru axle, 110mm hub spacing, 6-bolt
Rear Wheel WTB KOM Trail rim, 32 14g Sapim stainless spokes, high-engagement Priority hub 12mm thru axle, 148mm spacing, 6-bolt, single speed cassette body
Tires WTB Ranger TCS Light/Fast Rolling SG2, 29 x 2.4”
Belt Gates 115t CDX
Crank Pinion-forged crank arms 170mm
Front Sprocket Gates CDX Stainless 32t Pinion sprocket
Rear Sprocket Gates CDX stainless 32t
Pedals Aluminum body, chromoly spindle 
Seatpost Alloy 2-bolt, 31.6mm diameter
Saddle WTB Volt Medium
Weight 34 lbs

GEOMETRY

FRAME SIZE S M L XL
Approx. Inseam 28” - 31.5”  29” - 33”  31” - 35”  32.5” - 36.5” 
Approx. Height 5’3” – 5’7”  5’7” – 5’10”  5’10” – 6’1”  6’1” – 6’5” 
(A) Standover 27" 28" 30" 31.5"
(B) Seat Tube Length 380mm 440mm 480mm 500mm
(C) Seat Tube Angle 74 degrees  74 degrees 74 degrees  74 degrees 
(D) Effective Top Tube 594mm 600mm  627mm  666mm 
(E) Chainstay Length 456mm  456mm  456mm  456mm 
(F) Head Tube Length 90mm  110mm  130mm  160mm 
(G) Wheelbase 1142mm 1150mm 1180mm 1210mm
(H) Head Tube Angle 68 degrees  68 degrees  68 degrees  68 degrees 
(I) Stack 577mm  595mm  614mm  644mm 
(J) Reach 425mm  427mm   448mm  478mm 
(K) Fork A-C 500mm  500mm  500mm  500mm 
(L) Fork Offset 44mm  44mm  44mm  44mm 
(M) Crank 170mm 170mm 170mm 170mm

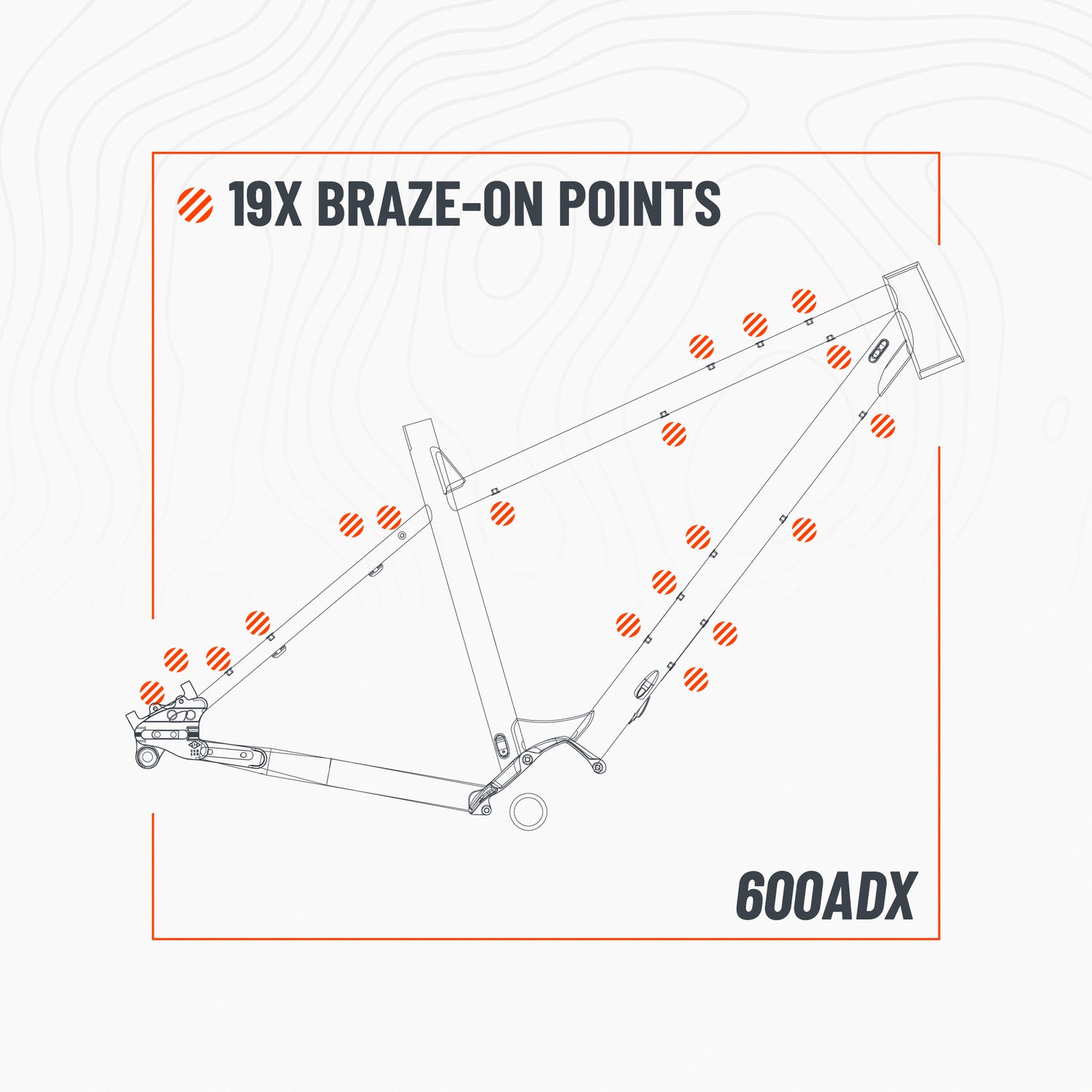

Braze ons

LOAD UP AND GO

The 600ADX is designed to take your gear, ride anywhere, and simply keep going.

There are rear rack mounts, seat stay eyelets, and eyelets on underside of top tube for a bolt-on frame bag. You could mount 5 bottle cages, or you could solid mount a frame bag with 4 more bottle cages - whatever setup is best for your rides!

There are additional eyelets on the downtube and toptube for mounting cargo cages. This is one of the first production bicycles with bottle cage mounts and rack mounts on the seatstays.

The bike also has cable routing for stealth dropper seatposts if people want to upgrade for a more trail-ready setup.

DESIGN, TESTED, and TRAIL APPROVED

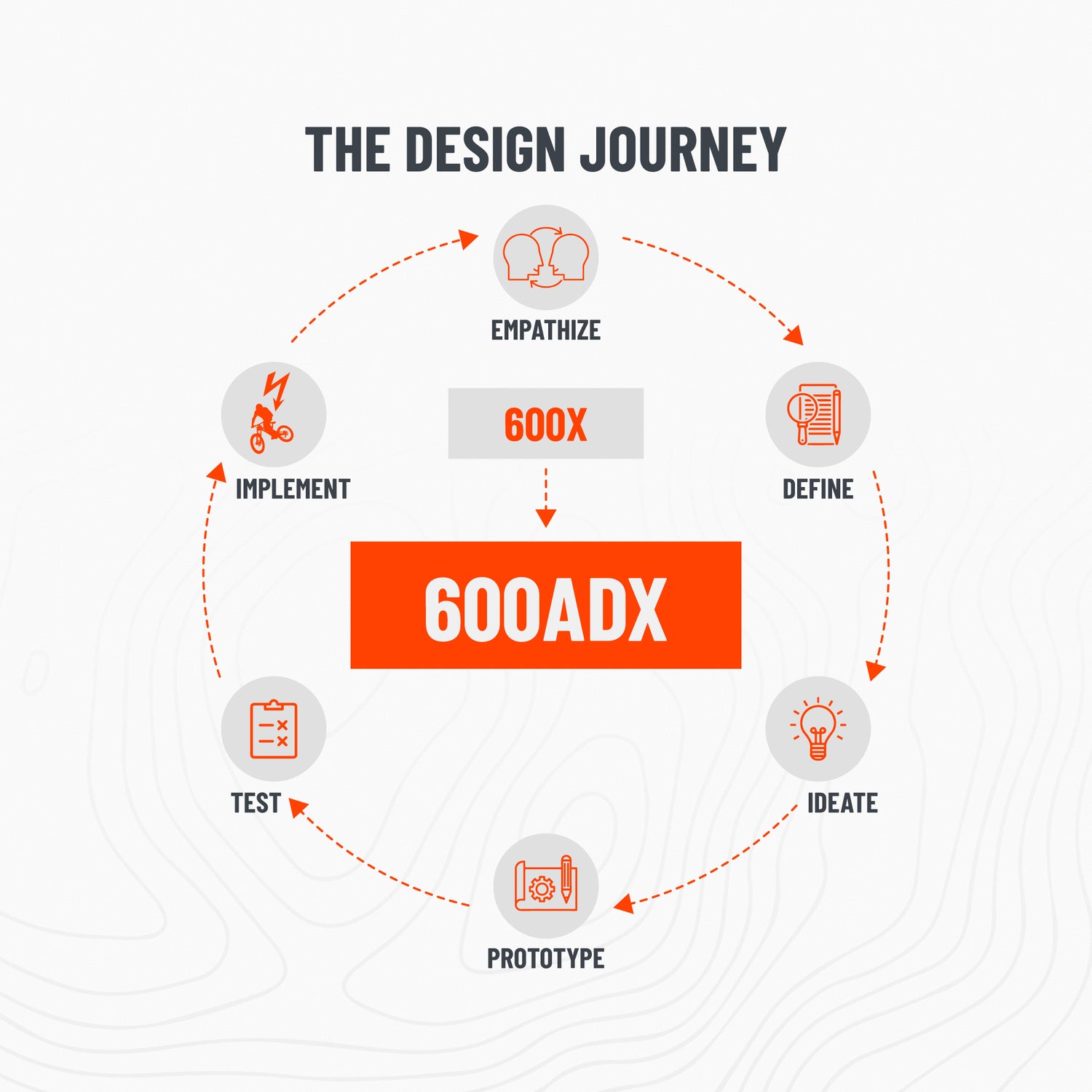

REAL WORLD R & D

R & D means Research and Development, but we also have some secret weapon R & D's - Ryan Van Duzer. The journey started with a goal of creating the ultimate bikepacking bicycle.  One that would be capable of rigorous use, durable to handle a load of different terrain, and low maintenance to minimize the challenges of adventure riding.

The result was the 600X.  Duzer’s adventures across the country, up Baja, down Sweden, or on the Divide have delivered proof of achieving our goal. Over thousands of miles and hundreds of thousands of feet of climbing we have seen the bicycle travel across the country and the world.

Over the past few years, we have unique insight into the experience.  We have taken feedback from all of our riders, whether they are taking an overnight trip in Seattle, traveling across Africa, or taking on a first trip in their home state.  Paired with Duzer’s experiences, we prototyped advancements that would increase the flexibility and capability of the 600X

The result of this customer listening, our internal design and prototyping, and rigorous testing by Duzer is the 600ADX.  The 600ADX delivers more sizing flexibility for riders - both across a range of heights and within a sizing tier.  The geometry remains comfortable for the long haul, and is also capable and fun on more technical and demanding terrain. The Marzocchi fork is plush and stable, as well as removes weight from the front end.

We are proud to continue our work to deliver the ultimate, most reliable, and capable adventure bicycle, through our rider listening, design development, and field testing by Duzer.

PROPER SIZING

We recommend sizing based on your leg inseam. To properly determine your inseam, measure from the top of your crotch to the ground with your shoes off. Please watch the below video and contact us any time with questions!

Small: Inseam 28" - 31.5"

Medium: Inseam 29" - 33"

Large: Inseam 31" - 35"

XL: Inseam 32.5" - 36.5"

Weight limit - 300 lbs max combined weight (rider, bicycle, and any cargo)

THE BEST CUSTOMER SERVICE ALWAYS HERE FOR YOU

We offer a quality warranty backed by the best customer service in the industry. We protect against any material and workmanship defects all backed by 7-day-a-week support. That's a real Priority team member ready to answer all your questions. Even if we aren't riding with you, we've still got your back!

GET IN TOUCH

FAQS

You have questions. We have answers.

Is this a replacement for the 600X, or just the 600X with a different fork?

The 600ADX is brand new model designed with years of rider feedback about the 600X, numerous iterations of design and prototyping, and rigorous testing by the Priority team and Ryan Van Duzer.

Why did we choose the Marzocchi Bomber Z2 over the Wren fork?

We looked at the 600ADX’s geometry to fit a wider range of riders - both in absolute height as well as within a given size.  We know that riders may want to modify things like seat height or position to fit the different rides they are doing.  In doing so, this also changed our spec for the front fork.  The Wren fork is great, it’s traveled some of the roughest terrain around the world, but the Marzocchi Bomber Z2 fit the ADX better.  There are other benefits as well in that it has a simple setup, is lighter to optimize weight, and has a large service network through Fox dealer network.

Can you change the gearing?

The 600ADX comes with 32-tooth stainless Gates CDX sprockets front and rear with a 115t belt for a gear range from 16.1” to 97.5”. A 30t rear cog is compatible with the stock belt and would raise the gear inch range to 17.2” to 104.4”. A 34t rear cog is compatible with the stock belt and would lower the gear inch range to 15.2” to 91.8”. Any other gear combination will require a
different length belt. Consult the Gates Carbon Drive Calculator for more information.

Where can I mount gear to the 600ADX?

There are eyelets on the rear dropouts for a rear rack, on each seatstay, on the top and bottom of the downtube, and on the top of the toptube. While the Marzocchi Z2’s lowers are conducive to mounting gear, they do not recommend it.

Is the 600ADX compatible with a dropper seat post?

Yes, we made it so that the installation is as easy as possible. There is a port on the seat tube for an internally or stealth routed dropper and external guides along the downtube. The 600ADX takes a 31.6mm diameter seat post.

Is the 600ADX compatible with a rigid fork?

While we do not offer a rigid fork option for the 600ADX, it compatible with one. If you want to convert to a rigid fork we suggest working with your local bike shop and sourcing a fork with an A-C measurement between 480mm-500mm and a tapered steerer, or with the appropriate crown race to work with the tapered headtube of the 600ADX.

How is the ADX different from the HXT?

The ADX and the HXT are both Pinion hardtails with 29” wheels, Gates CDX carbon belt drive systems, but they differ significantly in feel and intent. The HXT is a trail hardtail designed for aggressive riding, and has an forward riding position and high-performance, gravity minded build kit to match. The ADX on the other hand has a more upright and comfortable riding position, faster rolling tires, a lighter suspension fork, and more braze-ons making it the better choice for offroad touring and general-purpose riding.

Is there a Pinion Smart.Shift option?

No, the 600ADX is only available with manual shifting. This bike is designed for remote backcountry adventures and unsupported touring beyond the electrical grid.

What frame materials are available?

The 600ADX is available in 6061 aluminum alloy with a custom drawn tubeset optimized for loaded touring and durability.
